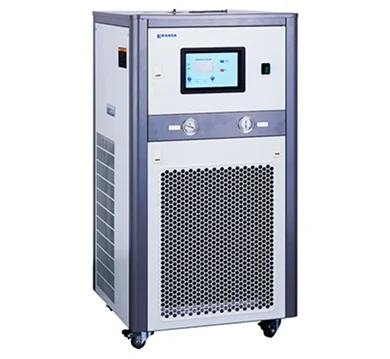

Main Components of an Air-Cooled Water Chiller

KANSA air-cooled water chillers combine a refrigeration circuit with a chilled-water circulation system. The specific component configuration varies according to cooling capacity, temperature range and control requirements.

• Compressor
  The compressor circulates refrigerant through the refrigeration system and raises its pressure after heat is absorbed from the process water. Depending on the model and cooling capacity, KANSA air-cooled chillers use rotor, scroll or flexible-scroll compressor configurations.
• Evaporator
  The evaporator transfers heat from the circulating process water or coolant to the refrigerant. Different KANSA chiller models use stainless-steel coil, tank-coil or shell-and-tube evaporator configurations according to cooling capacity and operating conditions.
• Air-Cooled Condenser and Cooling Fans
  Heat absorbed from the process is discharged directly to ambient air through the condenser. Cooling fans move air across the condenser surface, allowing the refrigerant to release heat without requiring a cooling tower or external condenser-water circuit.
• Expansion Valve and Refrigerant Circuit
  The expansion valve reduces refrigerant pressure before it returns to the evaporator. The refrigeration circuit also incorporates components such as a dry filter to support normal refrigerant circulation and system operation.
• Water Pump and Water Tank
  Many KANSA packaged air-cooled water chillers integrate a circulation pump and water tank. The pump circulates chilled water between the chiller and connected production equipment, while tank capacity and pump specifications vary according to the selected model.
• Monitoring and Control Components
  Depending on the chiller configuration, the water circuit can include a flow switch, water filter, pressure gauges and water-level monitoring. Standard models use an operating control panel, while selected high-precision models are equipped with touch-screen temperature controllers.

Industrial Applications

• Injection Molding & Plastic Processing
  For cooling injection molding machines & molds, extrusion lines and wood-plastic composite processing equipment
• Machine Tools & Industrial Equipment
  For cooling CNC machines, manufacturing equipment requiring continuous process heat removal
• Chemical & Pharmaceutical Processing
  For cooling reactors, process vessels, mixers and processing equipment requiring temperature-controlled production processes
• Printing & Packaging
  For cooling printing presses, rollers and other heat-generating production equipment
• Food Processing
  Bakery equipment, food production machinery and process water cooling
• Solar Energy
  PV module manufacturing processes requiring independent chilled-water cooling
